Take Your OEM Radio To a New Look，Single Din body with a 13.3 floating Screen

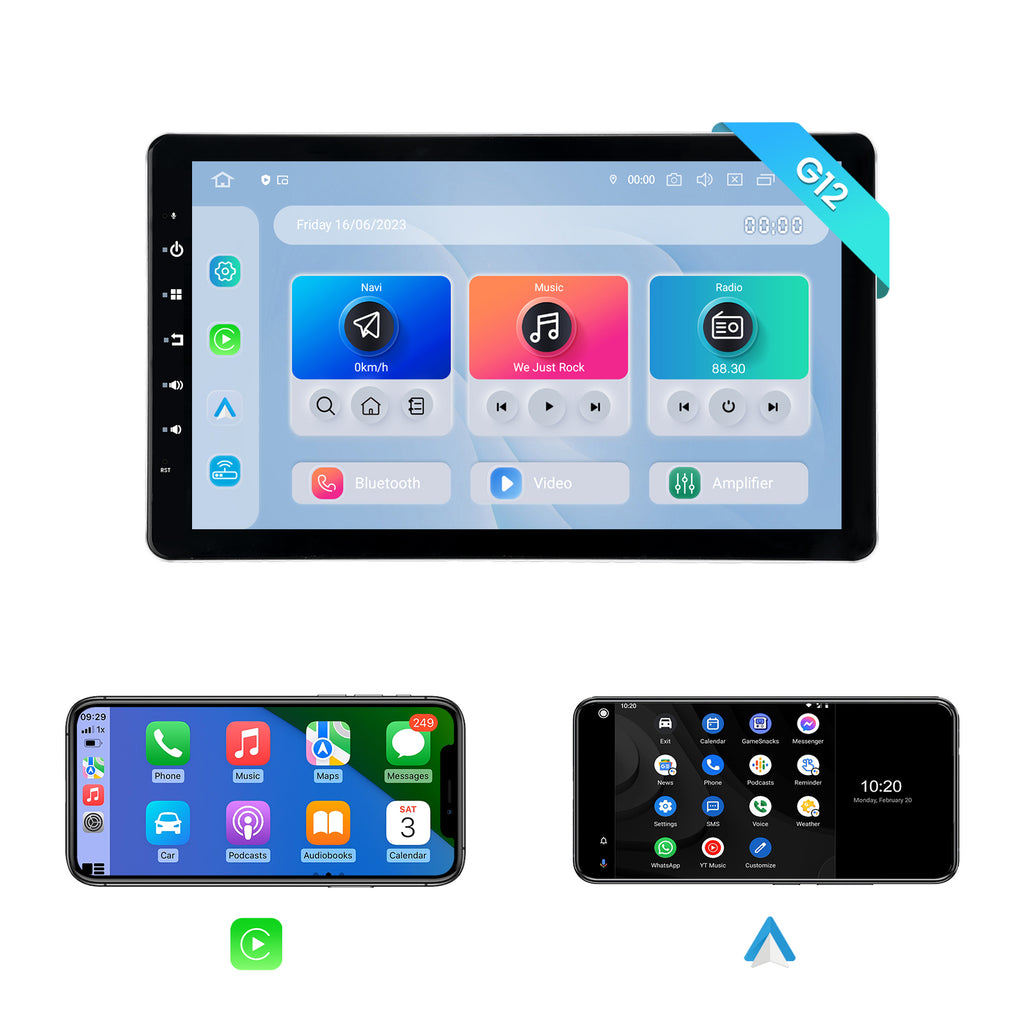

The HA2307-G12a-CP-2K-4 is a single din Android in-dash and multimedia system . Experience your all-new media with a beautiful 13.3-inch screen
Specifications :
CPU:Qualcomm 665;6G+64G;
Resolution:13.3''QLED 1920*1080 Touch Screen,Capacitive multi-touch display.
Amplifier: TDA7850 4*50W amplifier chip and optical output provides lossless transmitting of your audio;AKM7604 DSP chip delivers sound customization with 30 EQ presets.
4G LTE:4G SIM card slot,you can enjoy fast and stable internet access on the go
Bluetooth:Bluetooth Chip Qualcomm 5.0,allows for seamless connectivity with other devices,and stay connected while driving with hands-free phone calls and music streaming.
Features:
1,Wireless Carplay & Android Auto/Mirror Link
2,Android12 / Download apps from google play store, such as spotify,netflex,youtube,facebook
3,Brightness Mode,There are 3 modes including [Light],[Dark] and [Auto].

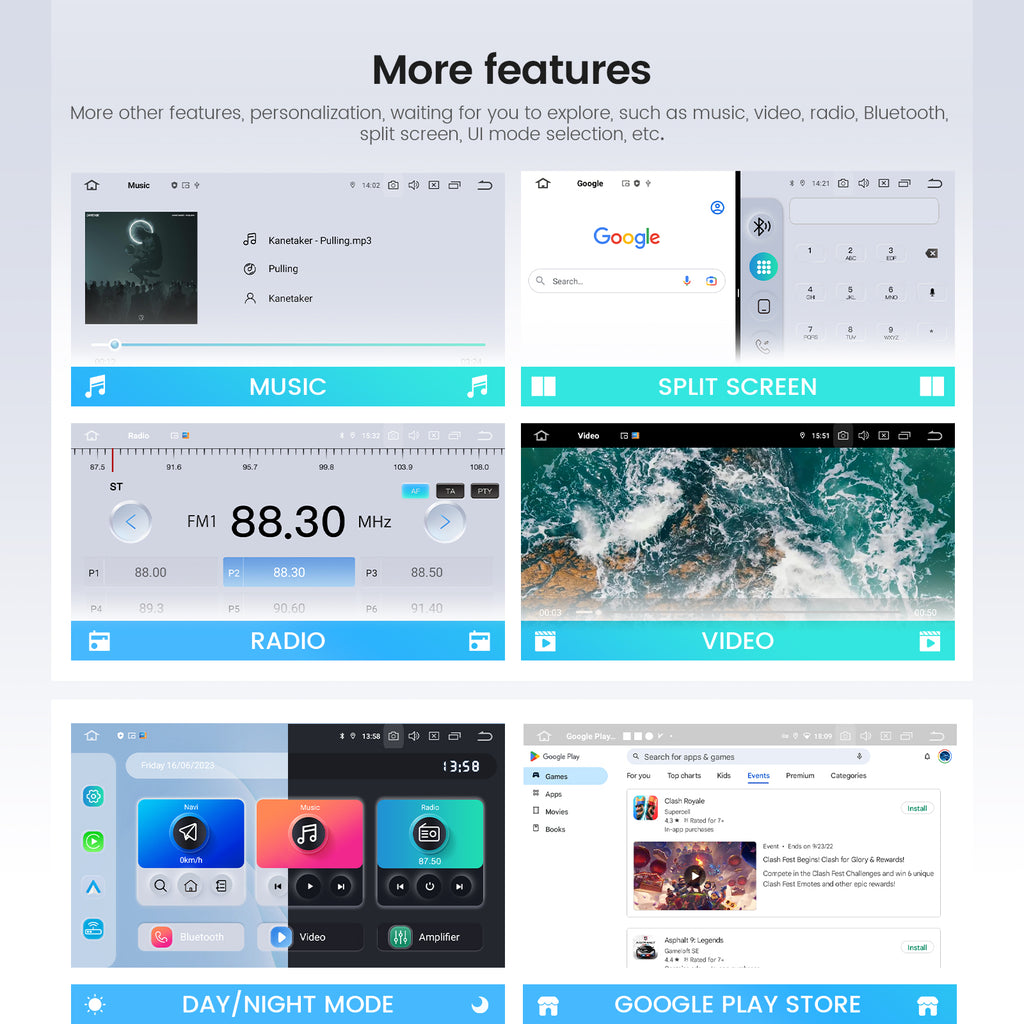

4,Full functions: HDMI Video Output/Video / Music / Radio / DSP / GPS Navigation / Wifi / BT Tethering / Internet / Split-Screen / Steering Wheel Control /RGB illumination
| G12 | Vivid | |
| Series | G12/Pro/Plus | Vivid11 |
| CPU | Qualcomm 665 | PX6 |
| Cortex | ARM Cortex-4*A73 and Cortex-4*A53 | Cortex-2*A72 and Cortex-4*A53 |
| OS | Android 12 | Android 11 |
| RAM | 4G/8G | 4G |
| ROM | 64G//256G | 64G |
| Screen size | 13.3 Inch | 13.3 Inch |
| Resolution | 1920*1080 | 1920*1080 |
| Radio Chip | NXP6686 | NXP6686 |
| Amplifier Chip | TDA7850 | TDA7850 |
| Bluetooth Chip | Qualcomm3031 | Qualcomm3031 |
| DSP Chip | AKM7604 | AKM7604 |
| EQ | 30 | 30 |
| Optical Output | √ | X |
| Screen | QLED | IPS |
| Resolutions | 1920*720 | 1920*720 |
| HDMI Output | √ | √ |
| Wifi | √ | √ |
| 4G LTE | √ | X |
| Carplay Chips | Zlink | Zlink |
| Carplay | Wireless | Wired/Wireless |
| Android Auto | Wired/Wireless | Wired/Wireless |
| Split screen multitasking | √ | √ |
| Screen Mirroring | √ | √ |
| Steering wheel controls | √ | √ |
| Built-in RDS radio receiver | √ | √ |
| Key button color | √ | √ |
| App installation | √ | √ |
| Built-in & external mic | √ | √ |

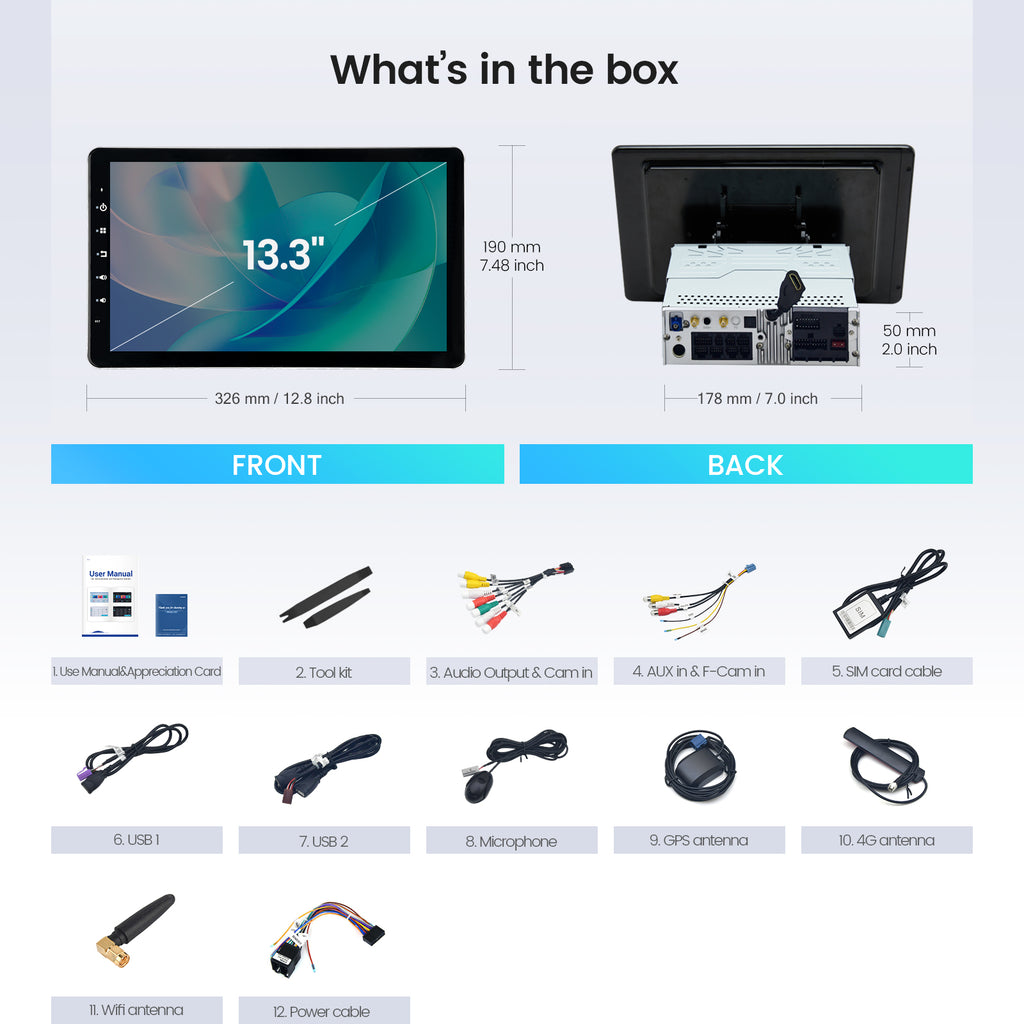

| Package included | Head unit +Harness+Tool kit: | Head unit +Harness |
| 1.Audio Output & Cam in | 1.Audio Output | |
| 2.Aux in & F-Cam in | 2.AUX in & Cam in | |
| 3.SIM card cable | 3.Single USB | |
| 4.USB 1 | 4.Dual USB Cable | |
| 5.USB 2 | 5.GPS Ant | |
| 6.Microphone | 6.Microphone | |
| 7.GPS antenna | 7.WiFi Ant | |
| 8. 4G antenna | 8.Power Cable | |
| 9.WIFI antenna | 9.User Manual | |
| 10.Power cable | 10. Canbus | |
| 11.Canbus | 11.USB Adapter | |
| 12.USB adapter | ||
| 13.User Manual | ||
| 14.Tool Kit |
